GearBox

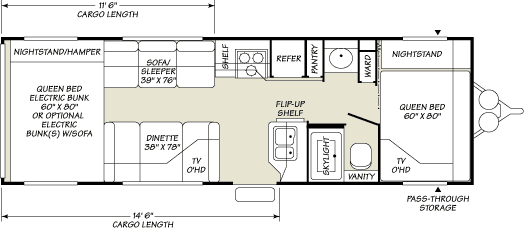

GearBox 260FS
 GearBox 260FS
GearBox 260FS Specifications
CHASSIS
Specifications
GVWR (lbs)1 11,400
Cargo Carrying Capacity (lbs)2,3,4 4,420
Gross Dry Weight (lbs)5,3,4 6,980
Hitch Dry Weight (lbs)5,3,6,4 1,110
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)7,8 29' 11"
Height (Feet and Inches)7,9 12' 2"
Fresh Water Holding Tank (gal)7,10 120
Grey Water Holding Tank (gal)7,10 55
Black Water Holding Tank (gal)7,10 40
Propane Capacity (lbs.)7,10 60
Tire Size ST225/75R15(D)

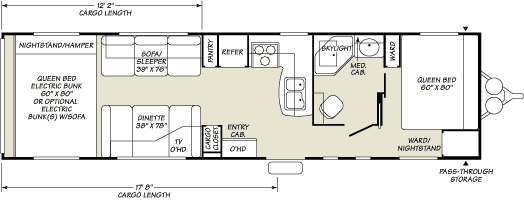

GearBox 290SA
 GearBox 290SA
GearBox 290SA Specifications
CHASSIS
Specifications
GVWR (lbs)1 14,500
Cargo Carrying Capacity (lbs)2,3,4 6,800
Gross Dry Weight (lbs)5,3,4 7,700
Hitch Dry Weight (lbs)5,3,6,4 1,150
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)7,8 35' 0"
Height (Feet and Inches)7,9 12' 2"
Fresh Water Holding Tank (gal)7,10 120
Grey Water Holding Tank (gal)7,10 55
Black Water Holding Tank (gal)7,10 40
Propane Capacity (lbs.)7,10 60
Tire Size ST225/75R15(D)

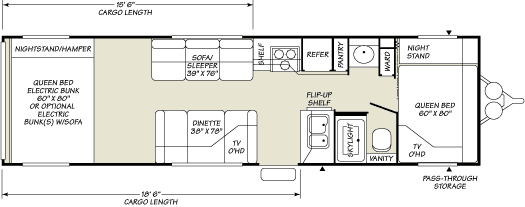

GearBox 300FS
GearBox 300FS
GearBox 300FS Specifications
CHASSIS
Specifications
GVWR (lbs)1 14,000
Cargo Carrying Capacity (lbs)2,3,4 6,040
Gross Dry Weight (lbs)5,3,4 7,960
Hitch Dry Weight (lbs)5,3,6,4 1,280
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)7,8 33' 11"
Height (Feet and Inches)7,9 12' 2"
Fresh Water Holding Tank (gal)7,10 120
Grey Water Holding Tank (gal)7,10 55
Black Water Holding Tank (gal)7,10 40
Propane Capacity (lbs.)7,10 60
Tire Size ST225/75R15(D)

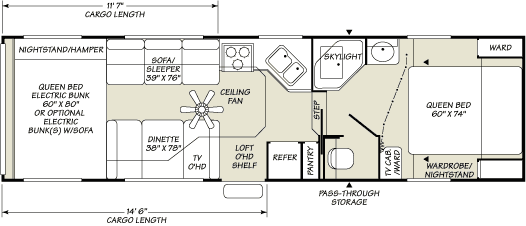

GearBox 295FS
GearBox 295FS
GearBox 295FS Specifications
CHASSIS
Specifications
GVWR (lbs)1 13,800
Cargo Carrying Capacity (lbs)2,3 5,550
Gross Dry Weight (lbs)4,3 8,250
Hitch Dry Weight (lbs)4,3,5 1,980
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)6,7 31' 5"
Height (Feet and Inches)6,8 12' 9"
Fresh Water Holding Tank (gal)6,9 120
Grey Water Holding Tank (gal)6,9 55
Black Water Holding Tank (gal)6,9 40
Propane Capacity (lbs.)6,9 60
Tire Size ST235/80R16(D)

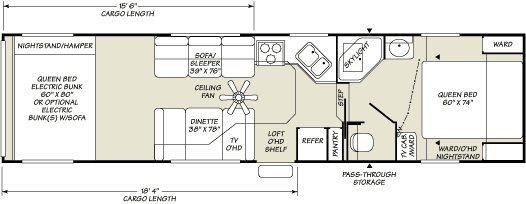

GearBox 335FS
GearBox 335FS
GearBox 335FS Specifications
CHASSIS
Specifications
GVWR (lbs)1 14,300
Cargo Carrying Capacity (lbs)2,3 5,720
Gross Dry Weight (lbs)4,3 8,580
Hitch Dry Weight (lbs)4,3,5 2,120
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)6,7 35' 3"
Height (Feet and Inches)6,8 12' 9"
Fresh Water Holding Tank (gal)6,9 120
Grey Water Holding Tank (gal)6,9 55
Black Water Holding Tank (gal)6,9 40
Propane Capacity (lbs.)6,9 60
Tire Size ST235/80R16(D)

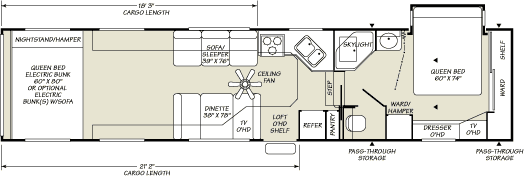

GearBox 375WFSG - Featuring a Full 102" Exterior Width
 GearBox 375WFSG
GearBox 375WFSG Specifications
CHASSIS
Specifications
GVWR (lbs)1 17,000
Cargo Carrying Capacity (lbs)2,3 6,730
Gross Dry Weight (lbs)4,3 10,270
Hitch Dry Weight (lbs)4,3,5 2,360
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)6,7 38' 11"
Height (Feet and Inches)6,8 13' 1"
Fresh Water Holding Tank (gal)6,9 120
Grey Water Holding Tank (gal)6,9 55
Black Water Holding Tank (gal)6,9 40
Propane Capacity (lbs.)6,9 60
Tire Size ST235/80R16(D)

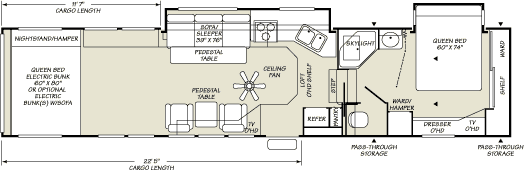

GearBox 385FS2G
GearBox 385FS2G
GearBox 385FS2G Specifications
CHASSIS
Specifications
GVWR (lbs)1 17,200
Cargo Carrying Capacity (lbs)2,3 5,470
Gross Dry Weight (lbs)4,3 11,730
Hitch Dry Weight (lbs)4,3,5 2,460
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)6,7 39' 11"
Height (Feet and Inches)6,8 13' 5"
Fresh Water Holding Tank (gal)6,9 120
Grey Water Holding Tank (gal)6,9 55
Black Water Holding Tank (gal)6,9 40
Propane Capacity (lbs.)6,9 60
Tire Size ST235/80R16(D)

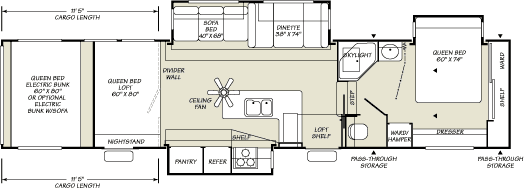

GearBox 395FS3G
 GearBox 395FS3G
GearBox 395FS3G Specifications
CHASSIS
Specifications
GVWR (lbs)1 17,500
Cargo Carrying Capacity (lbs)2,3 4,930
Gross Dry Weight (lbs)4,3 12,570
Hitch Dry Weight (lbs)4,3,5 2,860
DIMENSIONS AND CAPACITIES
Length (Feet and Inches)6,7 39' 11"
Height (Feet and Inches)6,8 13' 5"
Fresh Water Holding Tank (gal)6,9 120
Grey Water Holding Tank (gal)6,9 55
Black Water Holding Tank (gal)6,9 40
Propane Capacity (lbs.)6,9 60
Tire Size ST235/80R16(D)
